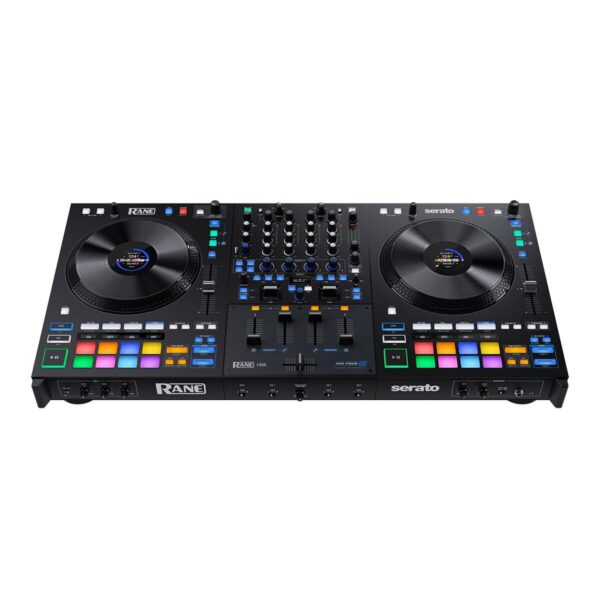

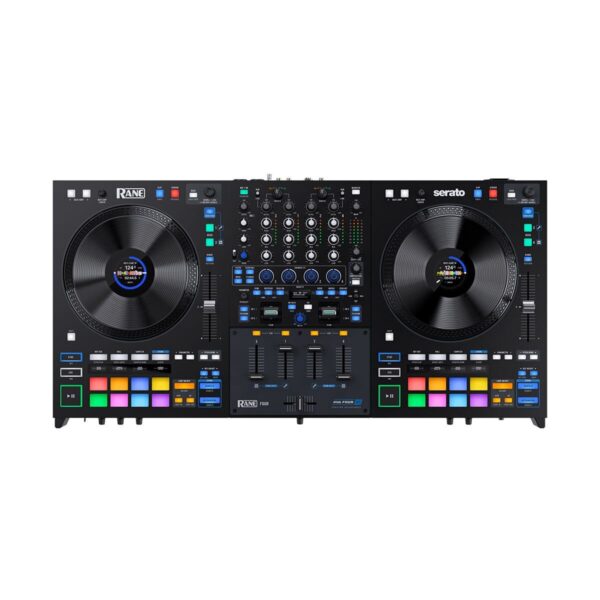

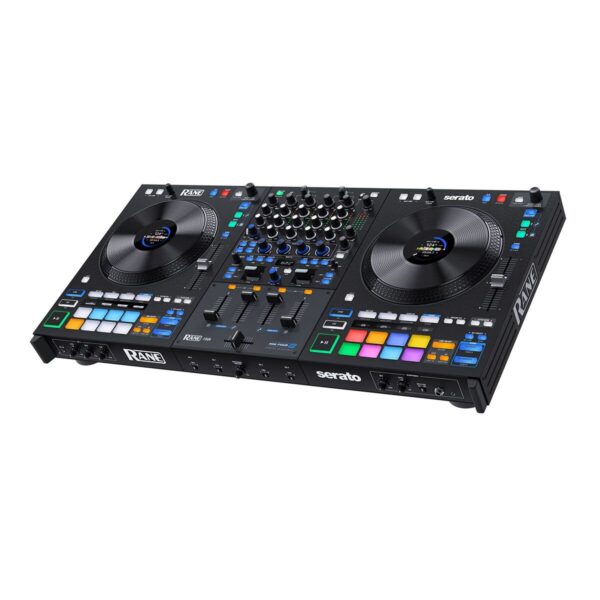

Rane 4
TTD$15,000.00
Digital Audio
Converters: Cirrus Logic, 24-bit PCM, 48 kHz
Digital Signal Processing: 32-bit, floating point, double precision
Dynamic Range (A-weighted, unity gain):
-
ADC: 113 dB
-
DAC: 113 dB
-
CD Input to Analog Output: 110 dB
-
CD Input to USB Output: 113 dB
-
USB Input to Analog Output: 113 dB
Inputs
Microphone 1/2 (Combo XLR/1/4″ [6.35 mm] TRS):
-
Analog Gain: 25 dB
-
Maximum Input: 110 mV
-
Gain Trim: Off to +26 dB (unity at center)
-
Tone Control: 2-band
Line/Phono Inputs 3/4 (RCA stereo pairs, switchable):
-
Line: Line
-
Maximum Input: 4 Vrms
-
Gain Trim: Off to +12 dB
-
Tone Control: 3-band, full-cut to +10 dB
-
THD+N (20 kHz BW @ 1 kHz: 0.004%)
-
Phono: RIAA
-
RIAA Curve: +/-0.25 dB
-
Gain (@ 1 kHz): 31.5 dB
-
Maximum Input (@ 1 kHz): 106 mV
-
Dynamic Range (A-weighted): 102 dB)
Outputs
Main Outputs (XLR):
-
Gain Trim: Off to 0 dB
-
Maximum Output: 8 Vrms
-
THD+N (20 kHz BW @ 1 kHz): 0.004%
-
Frequency Response: Flat – 20-20kHz
Main Outputs (RCA stereo pair):
-
Maximum Output: 4 Vrms
-
THD+N (20 kHz BW @ 1 kHz): 0.004%
-
Frequency Response: Flat – 20-20kHz
Booth Outputs (1/4”):
-
Gain Trim: Off to 0 dB
-
Maximum Output: 8 Vrms
-
THD+N (20 kHz BW @ 1 kHz): 0.004%
-
Frequency Response: Flat – 20-20kHz
Headphone Outputs (1/4″/6.35 mm and 1/8″/3.5 mm TRS):
-
Maximum Output: 4 Vrms Voltage: (no load)
-
Output Power: 50 mW (50 ohms)
-
Dynamic Range (A-weighted): 108 dB
Pads
(16) on/off multi-color back-lit pads (8 per deck, 9 modes each
Wheel Displays
(2) 320 x 240 Color LCD’s
Pad & FX Displays
(9) 128 x 32 Monochrome OLED’s
Faders
(1) MAG FOUR tension-adjustable crossfader with contour
(4) Standard channel faders
Connections
(2) XLR outputs (Main)
(2) 1/4” outputs (Booth)
(1) RCA stereo output pair (Main)
(2) XLR / 1/4” (6.35 mm) TRS inputs (Mic 1–2)
(2) RCA stereo input pairs (Deck 3-4)
(1) 1/4” (6.35 mm) TRS output (Headphones)
(1) 1/8” (3.5 mm) TRS output (Headphones)
(2) USB Type-B ports
(1) IEC power cable input
Power
Connection: IEC
Voltage: 100–240 V, 50/60 Hz
Consumption: 20 W
Dimensions
Dimensions (width x depth x height):
30.84” x 15.84” x 4.08”
783.34 x 402.34 x 103.63 mm
Weight (including platters)
18.25 lbs
8.27 kg
