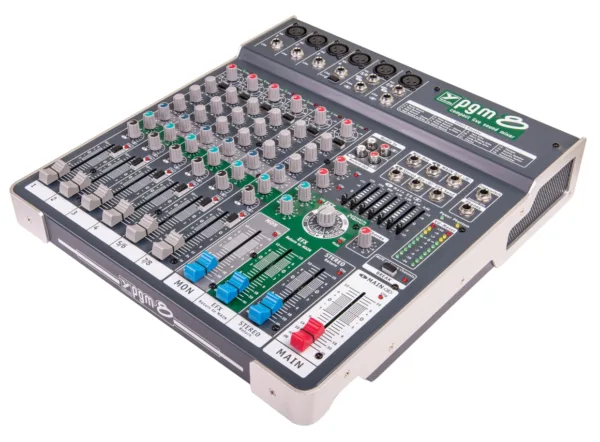

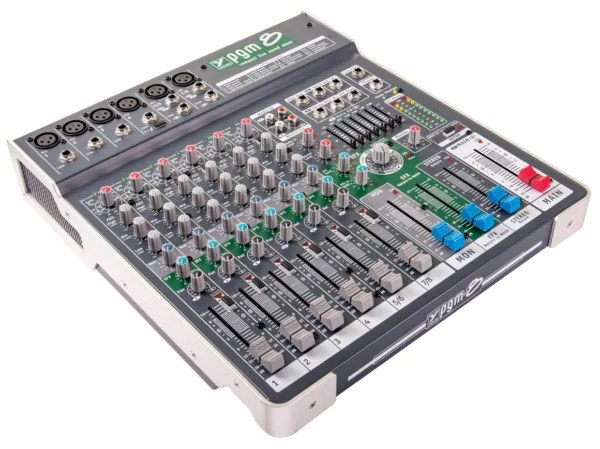

A compact analog mixer with onboard effects, the PGM8 is an all-in-one solution for live sound, installations, and presentations that require up to eight input channels (four mono, two stereo).

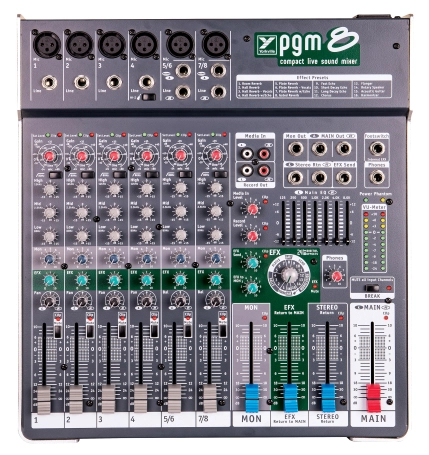

It offers robust connectivity with six XLR mic inputs, four mono 1/4″ line inputs, and two stereo 1/4″ line inputs. A Hi-Z switch on channel 4 enables the direct connection of instrument-level signals such as a guitar or bass without requiring an external DI. Each channel has a switchable high-pass filter, 3-band EQ, mute button, clip indicator, and 60 mm fader.

The 24-bit DSP engine has sixteen stereo effects including reverb, delay, modulation, and more. Channels 1 through 4 offer built-in compression, and a 7-band graphic EQ on the main output lets you fine-tune the total mix.

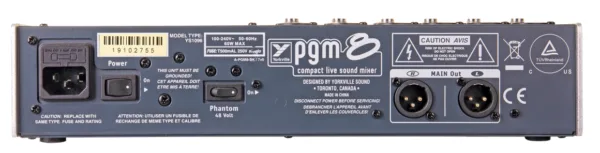

The PGM8 also includes multi-segment VU metering, phantom power, RCA connections to easily integrate consumer AV equipment, footswitch support to mute the onboard effects, a convenient global mute for input channels, and independent control of main, monitor, and headphone levels.

Packed with features and intuitive to operate, we like to think the PGM8 is a pretty good mixer.

Features

•  4x Mono Channels (XLR / 1/4″)
• 2x Stereo Channels (1x XLR, 2x 1/4″)
• Global Phantom Power
• Selectable Hi-Z Instrument Input on Channel 4
• Onboard Compression on Channels 1 – 4
• Onboard Digital Effects with 16 Algorithms
• 3-Band EQ per Channel with 7-Band Master Graphic EQ
• 60 mm Faders

Specifications
